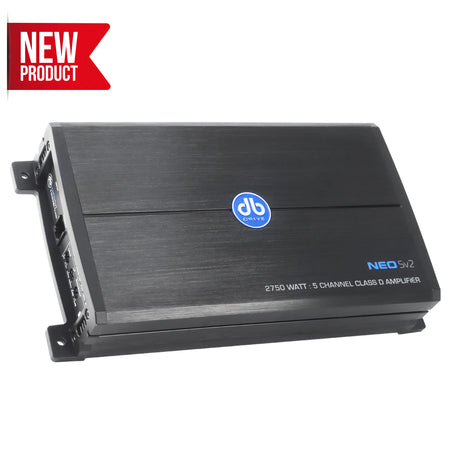

DB Drive NEO5V2 5 Channel Full Range Class D AMP

$649 ~~$699~~

6 easy payment of $

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments. Select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.

From $/week

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

Write a Review

Quantity:

- +

Add to Wishlist Added to Wishlist

Order in the next to get it by

Description

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

5 channel Full Range Class D Technology
2 ohm Stereo Load capability on Stereo Channels
2 ohm Mono load capability on 5th Mono channel
Amphibious grade conformal coating on PCB
Audiophile Grade RCA Connecters
Variable 12dB High/Low-pass crossover filters
Bridgeable outputs @ 4ohm load
Double Sided circuit tablet
Bass Remote included
Compatible with any 4/2ohm loudspeaker

Length (A)	6.25″ / (159mm)
Width (B)	5.20″ / (132mm)
Height (C)	1.855″ / (47mm)

GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling	4 x 125 Watts @ 4Ω
	4 x 250 Watts @ 4Ω2 x 250 Watts @ 4Ω Bridged 1 x 500 Watts @ 2Ω 5th Ch.

GENERAL SPECIFICATIONS

Rated Power @ 14.4 Volts

Dynamic Power Handling

4 x 125 Watts @ 4Ω

4 x 250 Watts @ 4Ω2 x 250 Watts @ 4Ω Bridged

1 x 500 Watts @ 2Ω 5th Ch.

PARAMETERS
THD (100Hz @ 1Ω)	0.04%
Bandwidth (-3 dB)	18Hz ~ 22KHz
Damping Factor (1KHz @ 4Ω)	100
S/N ratio (as weighted @ 1 Volt)	99db
Input Sensitivity	0.20V ~ 9.0V RMS
Minimum Load Impedance	2Ω
Channel 1-2 filter Range	40Hz ~ 300Hz
Channel 3-4 filter Range	40Hz ~ 300Hz
Channel 5 filter Range	40Hz ~ 400Hz
