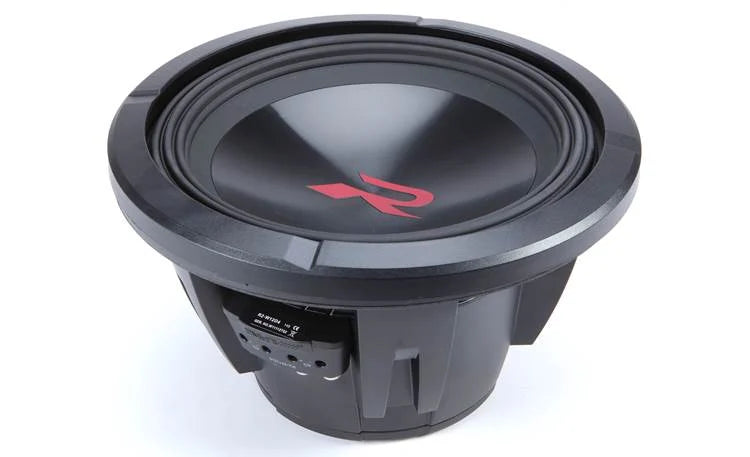

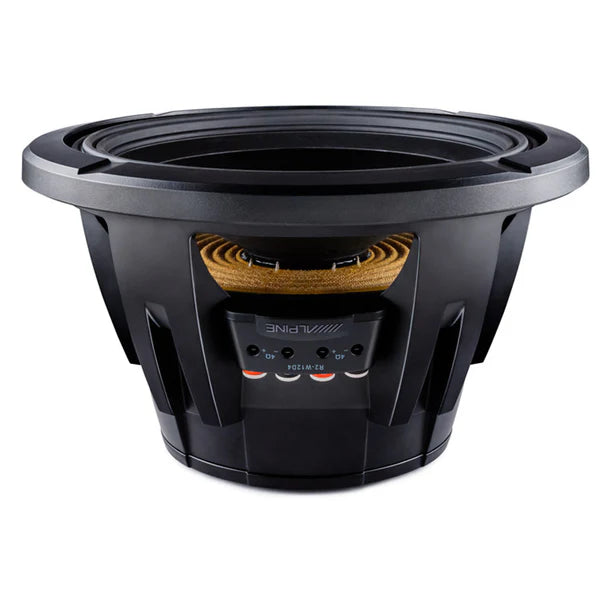

ALPINE R-W12D4 750W RMS Type-R Subwoofer

$399

ALPINE R-W12D4 750W RMS Type-R Subwoofer

$399

6 easy payment of $


Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments. Select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.
From $/week

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term
- +
Order in the next to get it by
Description

Product Description

Alpine Authorized Online Dealer

For those who like it loud, Alpine salutes you! Their legendary R-Series subwoofers are made to bring powerful bass to just about any vehicle. The R-W12D4 12″ sub features a cone made from Kevlar® treated pulp — the same material used to make bulletproof vests — while its durable Santoprene™ surround allows for huge amounts of excursion. Alpine built this sub for bassheads who want the best of both worlds: accurate response and otherworldly thump

SPECIFICATIONS

Power Handling
Power Range: 250W – 750 Watts
RMS Power Handling: 750W
Peak Power Handling: 2250W
Dimensions
Mounting Depth: 162mm (6.375”)
Mounting Diameter: 275mm (10.875”)
Displacement: 0.10 cu. Ft.
Added Volume: 0.09 cu. ft. (Reverse Mount, Magnet Out)
General
Frequency Response: 24Hz – 200Hz
FEATURES

Diaphram
Material: Oversized Hairline-Textured Mica Poly Dustcap w/ Kevlar Reinforced Pulp Paper Cone Body
Design: 2-Piece Parabolic
Surround
Material: Injected Molded Santoprene®
Design: High Amplitude Multi-Roll H.A.M.R Surround Design (Patent Pending)
Spider
Material: Conex®
Design: 10 Segment High-Roll Progressive Design
Voice Coil
Material: 180°C High Temp Wire on Sprial-Cut Aluminum Bobbin
Design: 4-Layer Dual Voice Coil
Motor Structure
Pole Geometry: FEA Optimized Design w/ Compound Radius Pole Geometry
Configuration: Radial Vented VC Heat Sink and Airflow Management System (Patent #7,634,101)
Frame
Material: Cast Aluminum
Design: Perimeter Vented Heat Transfer (Patent Pending), Integrated Shorting Sleeve and Airflow Management System
Terminals
Layout: One Sided
Design: Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper
