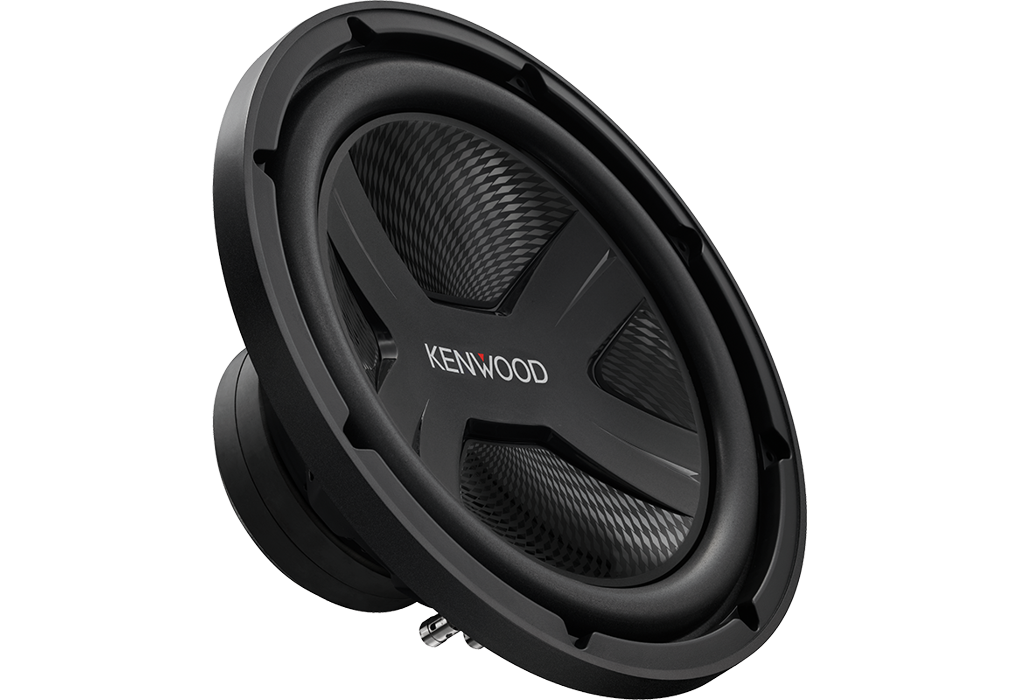

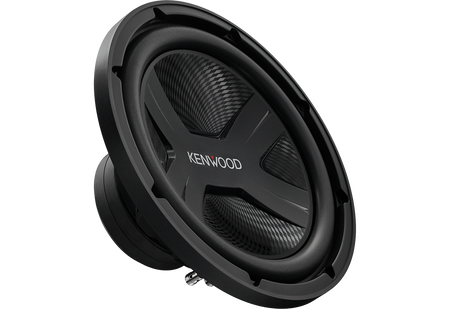

KENWOOD KFC-PS3017W 12INCH SUBWOOFER 2000WATTS/400RMS

$149 $199

KENWOOD KFC-PS3017W 12INCH SUBWOOFER 2000WATTS/400RMS

$149 $199

6 easy payment of $


Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments. Select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.
- +
Order in the next to get it by
Description

KFC-PS3017W

PS-series 30cm subwoofer

The Kenwood KFC-PS3017W Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control. The X-Motif Cap (Injection Molded Polypropylene) controls resonance frequency and cut away unnecessary high frequency sound to deliver powerful, solid bass.



Key Features
  • 300mm Polypropylene Cone (PP Cone)
  • 400 Rated/RMS Input Power
  • High-ridged Two-piece Diaphragm for solid bass
  • X-motif cap Technology for resonance control
  • Single, multi-layered, voice coil.
  • Aluminum bobbin for better thermal conductivity
  • Airflow control for optimal heat radition
  • Stress controlled spider
  • Push-terminals for easy connection
  • Sealed/Ported installation capabillity
Speaker Features
  • Speaker Size 300mm
  • Oversized Dimension Yes
  • Speaker Cone Design Diamond-Array pattern
  • Magnet Type Ferrit
  • Voice-coil single, multi-layer voice coil
  • Terminals Push Type
  • Spider Stress controlled spider
  • Bottom-Yoke Fully closed bottom yoke
  • Heat dissipation technology Airflow control
  • Installation Capabillity Sealed / Ported
Speaker/woofer Specifications
  • Peak Input Power 2000W
  • Rated Input Power 400W
  • Woofer Cone material Polypropylene (PP) Cone
  • Center Cap Type x-motif cap
  • Speaker Basket Steel
  • Speaker Surround Foam
  • Spider Type Stress controlled Spider
  • Sensitivity 85dB/W/m
  • Frequency Response 29Hz ~ 300Hz
  • Speaker Impedance 4Ω
  • Dimensions (W x H x D) 326 x 326 x 155.4mm
  • Mounting Depth 137mm
  • Mouting Hole Diameter Ø 280mm
  • Speaker Weight 4200gr
Subwoofer Parameters
  • Nominal impedance (Z) 4Ω
  • DC resistance (Re) 3.7Ω
  • Resonant frequency (FSO) 24.4Hz
  • Mechanical Q factor (QMS) 6.79
  • Electrical Q factor (QES) 0.52
  • Total Q factor (QTS) 0.483
  • Voice coil inductance (LBM) 2.04mH
  • Voice coil diameter (d) 50mm
  • Force factor (BL) 12.9T/m
  • Peak excursion Xmax 5.9mm
  • Moving mass (MMS) 152gr.
  • Volume accoustic compliance (VAS) 104liter
  • Piston Area (SD) 0.0512m²
  • Displacement 1.2cc
  • Sealed box volume 35.4liter
  • Sealed Box Dimensions 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD)
  • Vented box volume 42.5liter
  • Vented Box Dimensions 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD)
  • Port dimensions (labyrinth) (W x H x L) 35 x 324 x 736mm
