Primum Series XP620 is a 16,5 cm (6,5″) 2- way coaxial speaker

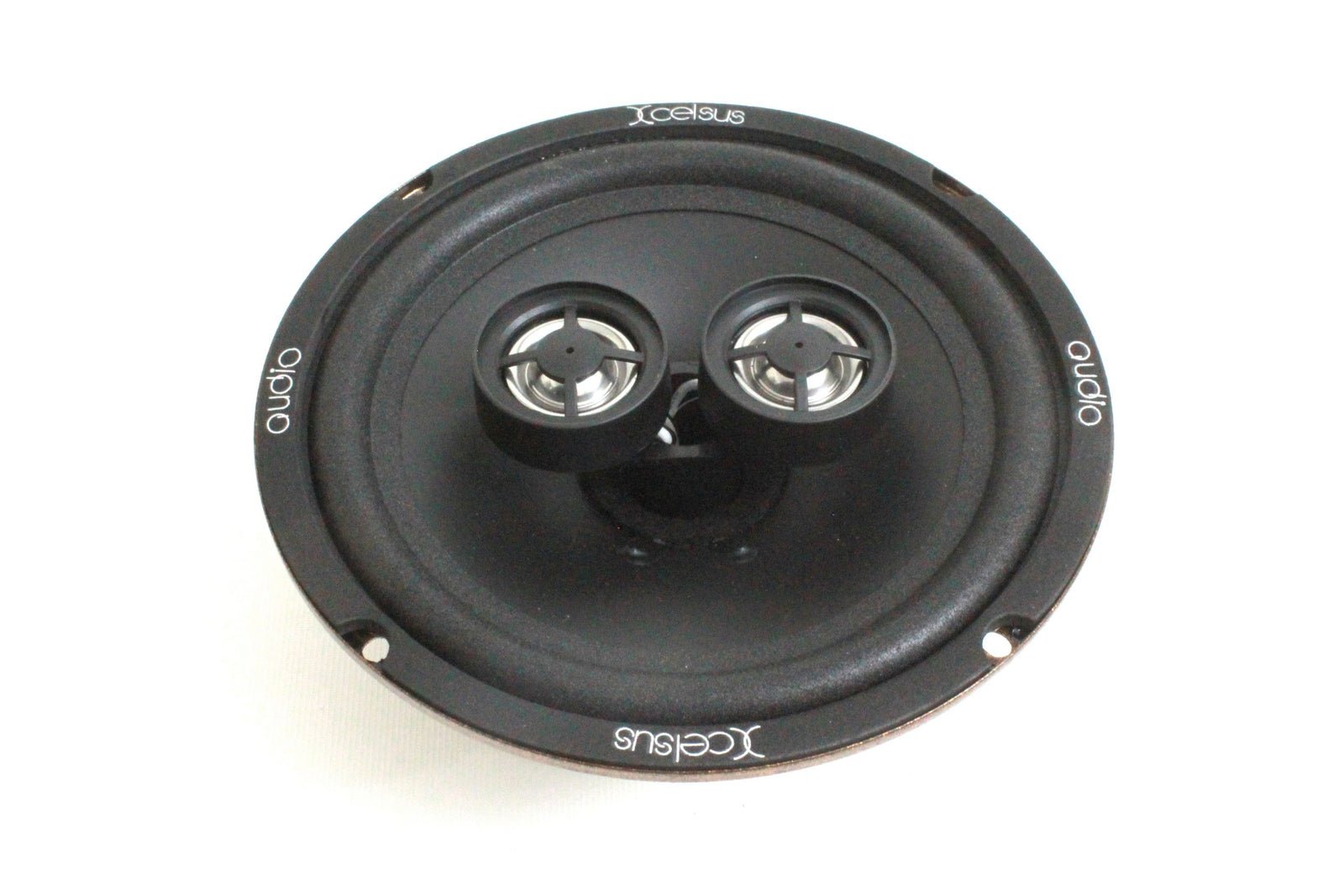

• Dual 16mm Mylar tweeter array for extended frequency response when mounted in vehicle factory locations.
• Polypropylene Mica filled cone

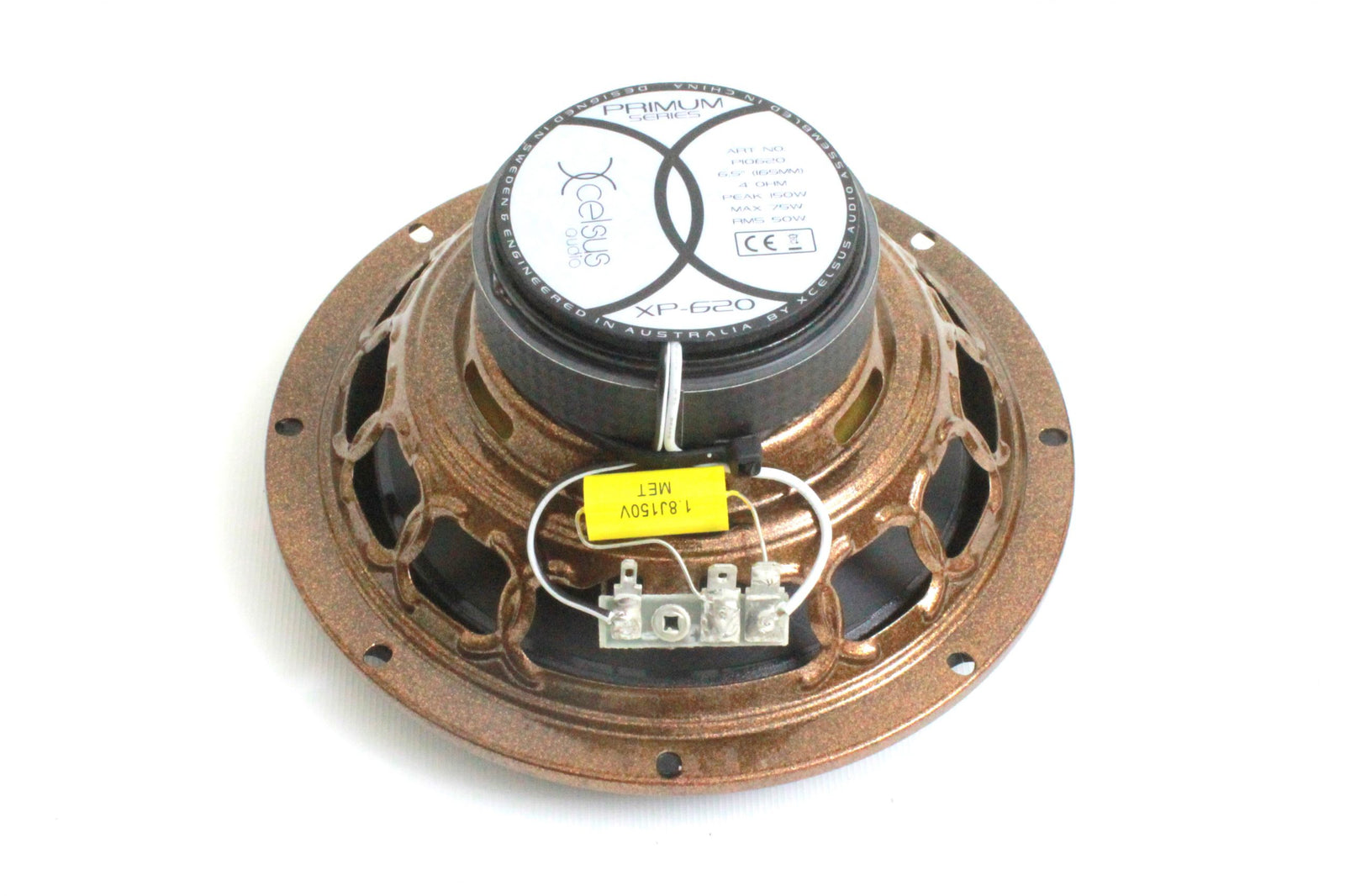

• Inbuilt Mylar 6dB Crossover

Description

The design premise behind this speaker was to provide a rich full sound at an affordable price.

This was done by incorporating two pieces of 13mm tweeter into the design which is not commonly seen in other brands of coaxial speakers. The result is an excellent sounding speaker that can be run by a high-power head unit or amplifier.

The XP620 was designed as an excellent factory upgrade for today’s modern vehicles. The forward-mounted dual tweeter array came about after extensive testing in a multitude of real-world conditions where a speaker is mounted deep behind a door or trim panel often dampening the treble of a traditional coaxial speaker.

The XP620’s dual Mylar 16mm dome tweeter array remains clear, precise and in unison with the bass driver for a rich and full musical experience no matter the location. These speakers will not only outstand you in a demo board but also in the real world of your vehicle where it counts.

Specifications:

• Power Rating: (RMS) 50 Watts
• Maximum / Peak Power: 75/120 Watts
• Resistance: 4-Ohm
• Operating Frequency Range: 50 - 20,000Hz
• Sensitivity: 92 dB (1/1 W / m)
• Crossover (MPX Capacitor with Cutoff Frequency): 6dB
• Tweeter: Double 16 mm Mylar with NEO magnet
• Length x Tweeter Width: 0.63 "x 0.63" (16 mm x 16 mm)
• Outside Diameter Mid-Bass: 6.5 "(165 mm)
• Magnet Diameter: 3.15 "(80 mm)
• Installation Depth: 2 "(52 mm)
• Mounting Hole: 5.7 "(145 mm)
• Weight: 2.4 Kg
