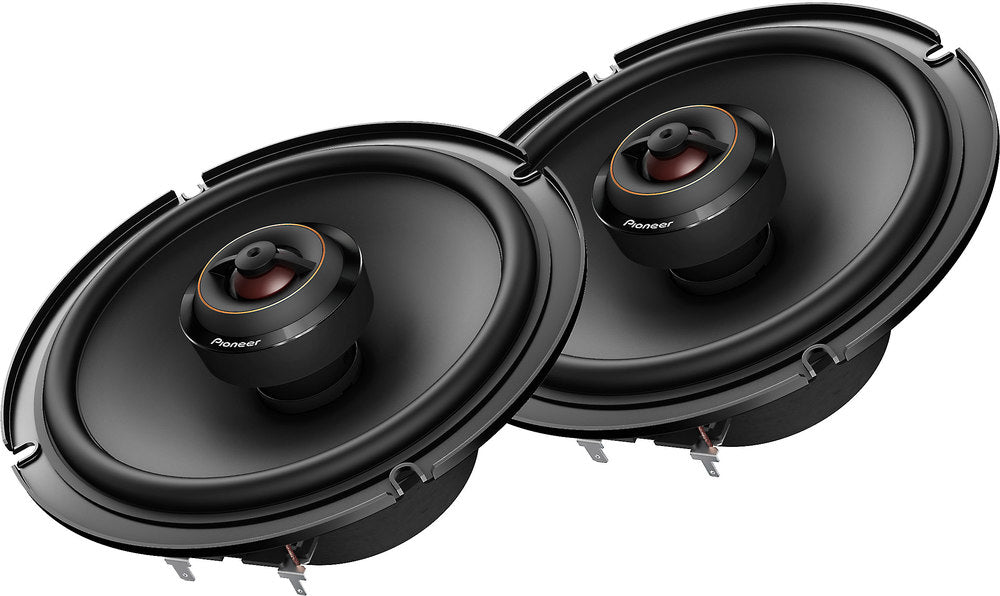

The TS-D65F is a pair of 6.5" 2-Way Coaxial Speakers with aramid fiber Interlaced Injection Molded Polypropylene (IMPP) cones and built-in tweeters.

The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.

Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.


26mm Polyester Soft Dome Tweeter
The D tweeter delivers extended high-frequency performance. It is resistant to the harsh environmental conditions of the automotive interior such as temperature, humidity, and vibration. The 26mm diaphragm offers extremely low distortion levels and a smooth, natural sound.

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. Aramid fibers are blended into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.


Size 17cm (23mm)
Max Music Power (Nominal) 270W (90W)
Frequency Response 27Hz to 44kHz
Sensitivity 88dB
Impedance 4Ω
Cross Frequency 4,500Hz (with -12dB)
Mounting Depth 65mm / 13mm* (*Tweeter Specification)
Mounting Depth with Mount Adapter 45mm* (*with 6x9" tweeter bracket)
Cut Out Dimensions 144mm
