KENWOOD DMX823WXS 9.0" 230mm Wireless Carplay Android Auto

KENWOOD DMX823WXS 9.0" 230mm Wireless Carplay Android Auto

$999

6 easy payment of $

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments. Select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.

From $/week

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

Write a Review

Quantity:

- +

Add to Wishlist Added to Wishlist

Order in the next to get it by

Description

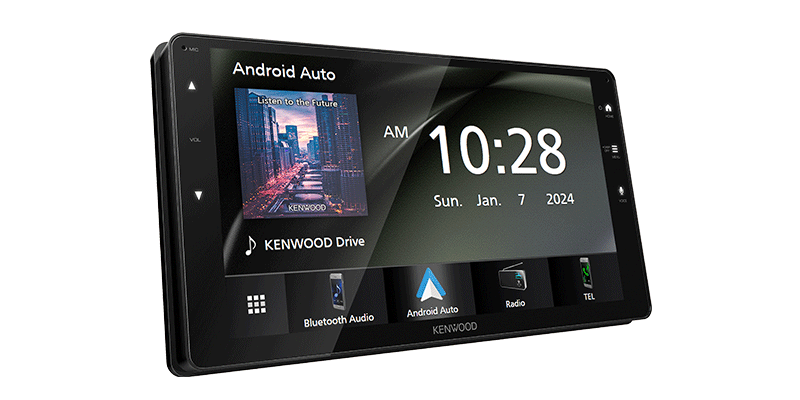

KENWOOD DMX823WXS 9.0" 230mm Monitor with Receiver Digital Multimedia Receiver

9.0" WSVGA Display with Capacitive Touch Panel
Wired & Wireless Apple CarPlay
Android Auto™ & Android Auto™ Wireless
Wireless Mirroring for iPhone / Android
13 Band EQ & Digital Time Alignment
Rear View Camera Input with Parking Guidelines
Built-in Bluetooth
2 Preouts 2.5V & Subwoofer Out (Mono)

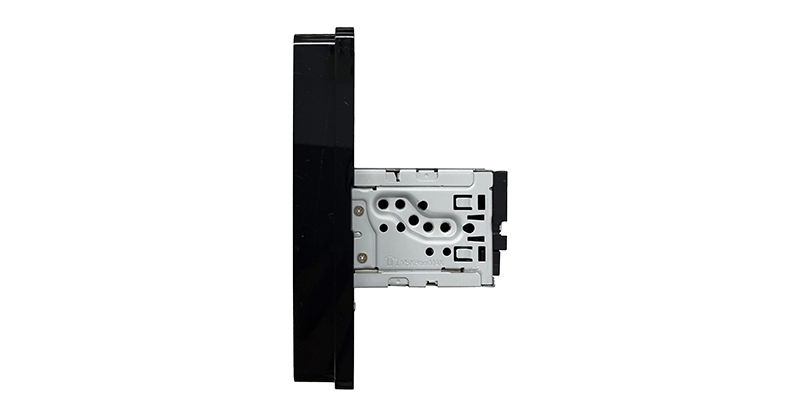

Short Chassis

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.

Works with Apple CarPlay Wi-Fi CERTIFIED

Main Unit	Monitor Section	Picture size		9 inches (diagonal) wide
		W x H
		Display system		TN LCD panel
		Drive system		TFT active matrix system
		Number of pixels		1,843,200
		Number of pixels		1024H x 600V x RGB
		Effective pixels		99.99%
		Pixel arrangement		RGB striped arrangement
		Back lighting		LED
	USB I/F Section	USB Standard		USB2.0 High Speed
		Connector		Type-A
		File System		FAT32/ exFAT
		Maximum Power Supply Current		DC5V(DC logo) 2.1A
		D/A Converter		24 Bit
		Audio Decoder		MP3/ WMA/ WAV/ AAC/ FLAC
		Video Decoder		MPEG1/ MPEG2/ MPEG4/ H.264/ MKV
	Wi-Fi Section	Frequency response	192k Sampling	20 - 20,000 Hz
			96k Sampling	20 - 20,000 Hz
			48k Sampling	20 - 20,000 Hz
			44.1k Sampling	20 - 20,000 Hz
		IEEE Standard		802.11 a/ n/ ac
		Frequency Range		5GHz (5.745～5.825GHz)
		Channels		149ch
				Auto(149,153,155,157,161ch)
		Transfer rates (MAX)		11a:54 Mbps / 11b: 11 Mbps
				11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps
	Bluetooth Section	Bluetooth Specification Version		Bluetooth V5.0
		Frequency		2.402 - 2.480 GHz
		RF Output Power (E.I.R.P.)		+0.7 dBm (AVE), Power Class 2
		Maximum Communication range		Line of sight approx.10m
		Audio Codec		SBC / AAC
		Multi Profile Support		Multi Profile
		Profile		HFP(Hands Free Profile) 1.7
				SPP(Serial Port Profile) 1.2
				A2DP(Advanced Audio Distribution Profile) 1.3
				AVRCP(Audio/Video Remote Control Profile) 1.6
				PBAP(Phonebook Access Profile) 1.2
	FM	Frequency range (Frequency step)		87.5 - 108 MHz (50kHz)
		Usable sensitivity		16.2dBf
		S/N:30dB		1.8μV/75Ω
		Frequency response(±3.0dB)		30Hz - 14kHz
		S/N Ratio(dB)		50dB (MONO)
		Stereo separation		35 dB (1 kHz)
	AM	Frequency range (Frequency step)		531 - 1611 kHz (9kHz)
	AM	Usable sensitivity		99μV (40 dBμ)
	Video	Color system of external video input		NTSC/ PAL
		Rear view camera input level (RCA)		1 Vp-p / 75 Ω
		Video Output level (RCA)		1 Vp-p / 75 Ω
	Audio	Maximum Power (Front&Rear)		50Wx4
		Full Bandwidth Power (Front&Rear) (at less than 1%THD)		22Wx4
		Output frequency band		20 - 20,000 Hz
		Preout level (V)		2.5 V / 10 kΩ
		Preout impedance (Ω)		1.4 kΩ
		Speaker Impedance (Ω)		4 - 8 Ω
		Equalizer		13 Band
		Band	Frequency	62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
			Level	-09 - +09 (-9dB - +9dB)
			Q	-
		HPF	Frequency	Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
			Slope	-6/ -12/ -18/ -24 dB/Oct.
			Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
		LPF	Frequency	30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
			Slope	-6/ -12/ -18/ -24 dB/Oct.
			Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
General		Operating voltage		12V DC car battery
		Main Unit Installation size W x H x D(w/o sleeve)		235 x 134 x 85.7mm
		Weight	Main unit	1.34 k

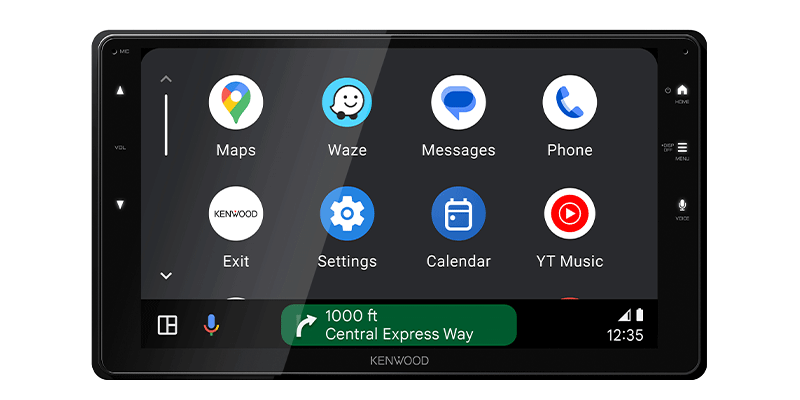

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

Works with Android Auto Wi-Fi CERTIFIED

Wireless Mirroring for smartphone

By installing the “MirrorApp+” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.

*Selected smartphones only
