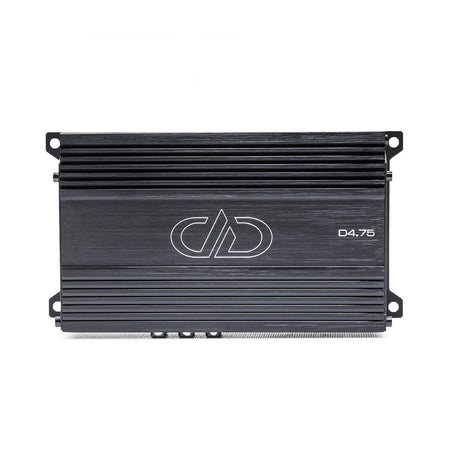

D SERIES (MINI) 4 CHANNEL

Overview The D4.75 is a mini chassis amp designed to make space constrained installations a breeze. Don’t be fooled by its small stature; in 4 ohm bridged mode this little powerhouse can produce over 2 x 180Watts. It also features a conformal-coated PCB for added moisture and dust protection in harsh environments; making it perfect for motorcycles, UTVs, and boats. All controls and connections are located on one side for ease of installation in motorcycle fairings, dashes, under seats, behind seats or in consoles. Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product. Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

Features Conformal Coated PCB 5-way

Protection Variable 12dB/Oct Heavy Duty PCB RCA Signal Pass-through MOSFET Power Supply Amplifier

Specifications

Test Voltage 14.4 Channels 4 Cont Wattage @ 4ohm 75x4 / 180x2 Cont Wattage @ 2ohm 90x4

Max Current Draw - Amperage 40 S/N

Ratio >90dB THD <0.2%

Input Voltage Sensitivity 6V ~ 0.2V

Pass-Through Output Yes

Remote Subwoofer Control No

Power Wire Guage In 2 x 18

Speaker Wire Gauge Out 18

Dimensions: in 6.2 x 3.9 x 1.7

Dimensions: mm 160 x 100 x 45

Shipping Weight – lbs 2
